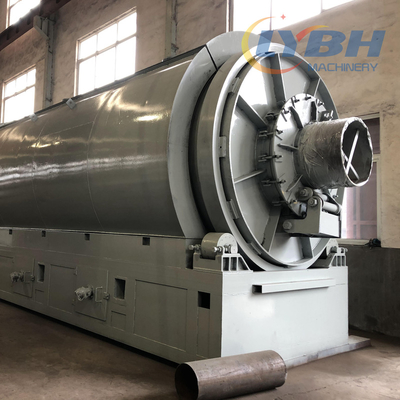

Used Factory Car Truck Rubber Tire Recycling Semi-continuous Solid Waste Treatment Pyrolysis Plant

1.0 Sets
MOQ
$20,000.00(>=1 Sets)
Price
Used Factory Car Truck Rubber Tire Recycling Semi-continuous Solid Waste Treatment Pyrolysis Plant
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Waste Tire Pyrolysis Plant
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC
Tire Machine Type: Other Tire Machine
Voltage: 220V/380V
Dimension(L*W*H): 15000 1800
Warranty: 1 Year
Key Selling Points: Automatic
Power (kW): 5.5 KW
Weight (KG): 60000 KG
Applicable Industries: Manufacturing Plant, Energy & Mining, Pyrolysis Plant
Showroom Location: None
Power(W): 5.5kw
Weight: 30ton
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: FR&HQ containers for shipment.
Supply Ability: 20 Set/Sets per Month
Product Description
Company Profile
  Our Qingdao Longyuan Baihong Machinery Equipment Co., Ltd is a big manufacturer for Pyrolysis Equipment for 22 years in China. We located at Qingdao-----a beautiful and Industry developed city.We established in year 1997, our main products are environment pyroloysis equipment.The company has passed ISO9001 certification, CE certification and SGS international third party certification.To the overall design, production and manufacturing, installation and commissioning, technical training, after-sales service in the whole industrial chain operation of high-tech enterprises.
Product details
The waste tire pyrolysis plant is decomposed into oil vapor by high temperature pyrolysis technology, and the oil vapor enters the cooling system through the oil gas separator, wherein the oil flows to the oil tank, and the pyrolysis gas passes through water seal to the gas recovery system to become the main furnace fuel. Realize continuous production. Equipment advantages: 1.The tire fragments are transported to the micro-negative pressure continuous pyrolysis system through the conveyor belt and other series for pyrolysis. In the reaction system, the rapid pyrolysis reaction under the vacuum condition of the gas temperature of 450-550℃ is carried out to generate pyrolysis oil, carbon black, Pyrolysis steel wire and combustible gas.
2.After passing through the oil and gas separation and recovery device, the combustible gas enters the hot blast stove for
combustion, providing reaction heat for the entire production system and achieving energy self-sufficiency.
3.After the high-temperature oil and gas are cooled into a liquid state by the spray condensation system, they pass through the oil and gas separation and recovery device, and finally enter the oil tank for storage.
4.The carbon black and pyrolysis steel wire are first recovered by cooling devices such as screw conveyors, and the recovered carbon black and steel wires are stored in storage tanks. Later, the carbon black and pyrolysis steel wires can be separated by magnetic separation and other devices. Of recycling.
5.There must be no leakage in the connection between all the connection pipes and the connection between the connection pipe and the stand-alone equipment to ensure complete sealing.
No
Working Item
Semi Continuous pyrolysis plant
Semi Continuous pyrolysis plant
1
Model

BH-SC10
BH-SC15
BH-SC20
2
Raw Material

Waste tires, waste rubber, waste plastic, waste acrylic, sludge, household garbage
Φ2600×6600
Φ2600×7500
3
24-hour Capacity
T
10
15
20
4
24-hour oil production
T
4.4
6.5
8.8
5
Heating Method

Direct heating
Direct heating
Direct heating
6
Working Pressure

normal pressures
normal pressures
normal pressures
7
Cooling Method

water-cooling
water-cooling
water-cooling
8
Water consumption
T/h
6
10
15
9
Noise
DB(A)
≤85
≤85
≤85
10
Total weight
T
22
28
32
11
Floor space
m
33*15*5
33*15*5
35*15*5
Details Images
1. The Raw Material For Pyrolysis Machine

2.The available fuel for pyrolysis processing
NO.
Fuel
1
Oil(fuel oil, tyre oil, heavy oil etc..)
2
Natural gas
3
Coal
4
Firewood
5
Carbon black pellet
3. End product percentage and useage
NO.
Name
Percentage
Usage
1
Tyre oil
45%
* can be sold directly.
* make diesel and gasoline by use oil distillation machine.
* can be as fuel.
2
Carbon black
30%
* can be sold directly.
* make fine carbon by use carbon black refining machine.
* make pellet by use carbon make pellet machine.
3
Steel wire
15%
* can be sold directly.
* make steel bloom by use hydraulic press-packing
4
Oil gas
10%
* can be as fuel burn by use gas burn system
(pyrolysis machine included)
*extra gas also be storage as fuel for other heating.
Our Advantages
1. Security:
a: Adopting automatic submerged-arc welding technology
b: All of the welding will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the
welding shape.
c: Adopting manufacture process controlling system on the quality, every manufacture process, manufacture date, etc.
d: Equipped with anti-explosion device, safety valves, emergency valves, pressure and temperature meters, as well as the alarming
system.

2. Environmental-friendly:
a: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke
b: Smell during operation: Fully enclosed during the operation
c: Water pollution: No pollution at all.
d: Solid pollution: the solid after pyrolysis is the crude carbon black and steel wires which can be deep-processed or sold
directly with its value.
Why Choose Us
Our service
1.Quality warranty period: One year warranty for the main reactor
of pyrolysis machines and lifetime maintenance for complete set of machines.
2.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's
workers on operation, maintenance, etc.
3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer.
4. For the damage caused by the users, our company provides the parts and accessories with cost price.
5. Our factory supplies the wearing parts with the cost price to clients.
