1 Ton Mini Batch Plastic Waste Tire Rubber Tire Pyrolysis Plant Mini Pyrolysis Plastic

 Different raw material has different oil ratio as below

The waste pyrolysis plant can process various kinds of waste plastic including pp , pe , ps , abs , rubber products ,tires to fuel oil , carbon black , steel wire.

Output oil product

From waste tire pyrolysis plant, 4 kinds of products can be obtained: fuel oil, catbon black, steel wire, and incondensable gas. Fuel oil is widely used in industries, such as steel factory, heavy oil generator, cement factory, and boiler heating etc. Carbon black can be made into pellets for making new rubber products. Steel wire could be sold to the recycle station or steel mill for remelting. The incondensable gas is recycled to heat the pyrolysis reactor, saving energy.

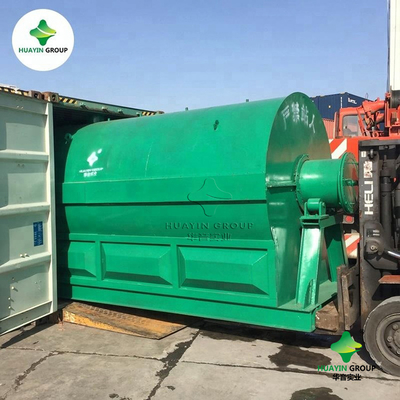

 Below is the smallest pyrolysis machine we produce:

1. Reactor: Adopt automatic welding machine, X rays detection and heating treatment which will not only guarantee the quality of welding but also greatly improve working efficiency.

2. Waste Gas Treatment: The extra gas will be recycled to the furnace for second burning thus saving your heating fuel , and protect the environment.

3.  The mini type pyrolysis plant is mainly used for doing test or demonstrating .

4. Security:   Anti-blocking device and have pressure gauges, alarms and safety valves to ensure the safety

5. The whole set Just need Very Small landing area , that can be installed in office.

Working process of the waste pyrolysis plant

 1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.
2. The oil gas will be cooled by condenser to liquid oilthen collected by oil tank.
3. The exhaust gas which can not be cooled to liquid oilwill be recycled to heat the reactor. Smoke produced during processing can achieve national emission standard through dual desulfurization and dusting removal device.
4. After oil producing finished , give 3 hours for cooling the reactor,after thatcarbon black will be discharged automatically.

 Specification

 Our service

1. Delivery time- It will be 10-15 days after we receive the deposit.

2. Warranty-The warranty period  is 1 year.

3. Installation and Training-Our company will send one technician for each set of machine for guiding your installation, testing the machine and training your worker.

our equipment has been exported to over 70 countries including Romania, Hungary, Turkey, Slovakia,Ecuador, Guatemala, Haiti, Mexico, Peru,Canada , USA,Jordan, UAE, Lebanon, Kuwait, Italian , Chile , Poland , England , Thailand, Greece, Mexico , Benin , Indonesia , India , Singapore ,Russia etc.

Main features of HUAYIN WASTE PYROLYSIS PLANT

Security:

1. Adopting automatic submerged-arc welding technology and all of the weldings will be detected by the ultrasonic nondestructive testing method.

2.Vacuum system ensures the whole line working well. temperature guages ,pressure guages ,auto alarm etc. to ensure the safety.

Environmental protection

1) The flue gas and sulphur will be purified and cooled by dust and sulphur removal device.

2) The procedure to remove carbon black is working under closed situation to avoid pollution.

3) The syngas will be recycled to the furnace for second burning ,avoid pollution.

Long service life

1. High temperature and pressure resistant raw material Q245R boiler plate with 16mm/18mm.

2. All cutting, rolling and welding works are finished by automatic machines.

Energy saving

1. Well sealing for heating system, no gas leak and saving fuel.

2. The exhaust gas will be recycled for reactor heating.

Why choose us

1. Qualified manufacturer and equipment with ISO and CE certificate;

2. Professional consulting team for offering free quote, market analysis and project guidance;

3. Technical department for providing technical support, project design and layout drawing;

4. Skillful engineering team for field installation, commissioning and operation training;

About us

Xinxiang Huayin Renewable Energy Equipment Co., Ltd is located in Xinxiang City, Henan Province, which is specialized in manufacturing waste tires/plastics to fuel oil pyrolysis machine and waste oil to diesel distillation machine since 1993. we have We have more than 2000 square meters running demo plant for customers' visitation and learning. our plants have been exported to over 70 countries around the world .
